Insulation Uni-Flex Plug

Insulation Uni-Flex Plug

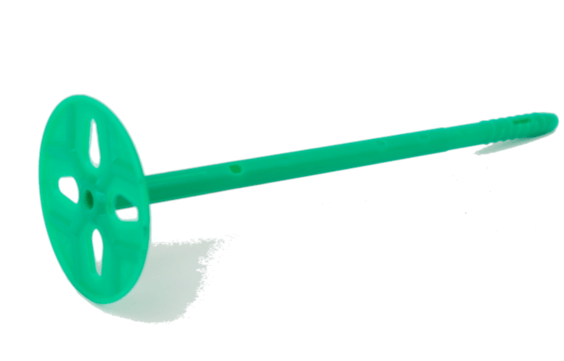

With the UNI-Flex Plug you will achieve a tight and secure fixing of both mineral wool and hard insulation. The “flexible” dish always stays vertical to the insulation material: no compression, retention of insulation value. You will also achieve strong fixing without UNI

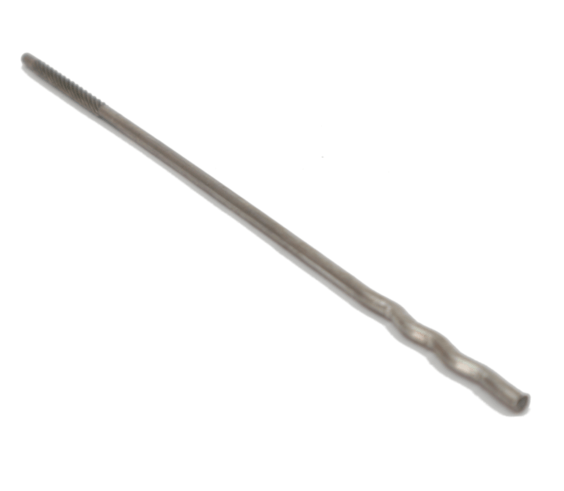

Hammer-in Wall Ties. This means the wall ties can be installed at any time. This increases safety and reduces the risk of injury. An

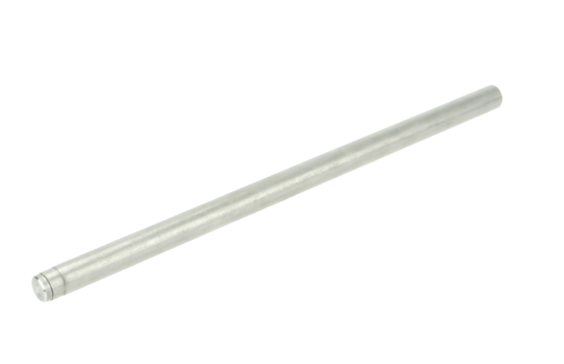

important fact for our processors on the construction site. Inquire about the embedding tools for a quick result.

Product Code Insulation Thickness (mm) Length (mm) Wall Tie (mm)
IFP4100 40 to 60 100 4
IFP4120 61 to 80 120 4
IFP4140 81 to 100 140 4
IFP4160 101 to120 160 4
IFP4180 121 to 140 180 4
IFP4200 141 to 160 200 4
IFP4220 161 to 180 220 4
IFP4240 181 to 200 240 4
IFP4260 201 to 220 260 4
IFP4280 221 to 240 280 4
  • Data Sheet

    Uni-Flex Plug Data Sheet (Download)
