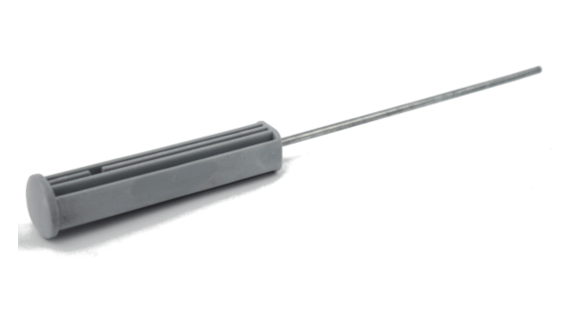

Insulation Flex-5 Plug
Insulation Uni-5 Plug
The Flex-5 plug for wall ties Ø5mm, the Flex-5 plug allows less material use and is suitable for up to 320 mm insulation thickness.
Ideal for construction of apartments or (towerblock) flats and passive houses. The Flex-5 plug is applicable for hard and soft insulation and can be used in concrete, sand-lime brick and brick.
| Product Code | Insulation Thickness (mm) | Length (mm) | Wall Tie (mm) |
|---|---|---|---|
| IFP5160 | 100 to 120 | 160 | 5 |
| IFP5180 | 121 to 140 | 180 | 5 |
| IFP5200 | 141 to 160 | 200 | 5 |
| IFP5220 | 161 to 180 | 220 | 5 |
| IFP5240 | 181 to 200 | 240 | 5 |
| IFP5260 | 201 to 220 | 260 | 5 |
| IFP5280 | 221 to 240 | 280 | 5 |
| IFP5300 | 241 to 260 | 300 | 5 |
| IFP5320 | 261 to 280 | 320 | 5 |
| IFP5340 | 281 to 300 | 340 | 5 |
| IFP5360 | 301 to 320 | 360 | 5 |
Associated Products
Associated Products
-
![Insulation Uni-Flex Plug]()
-
![Insulation Flex-5 Plug]()
ButtonEmbedding Tool
-

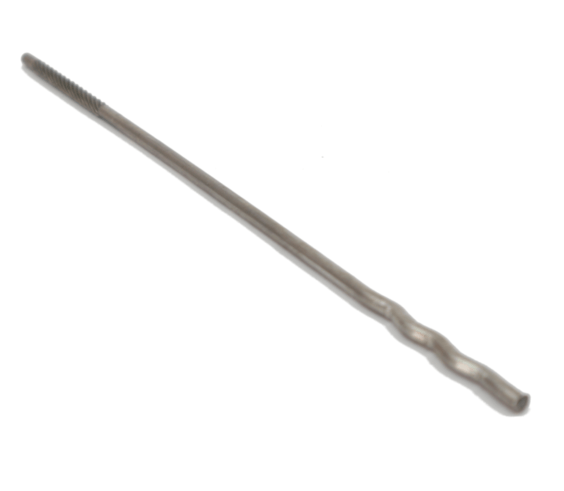

![Wall Tie]()
-

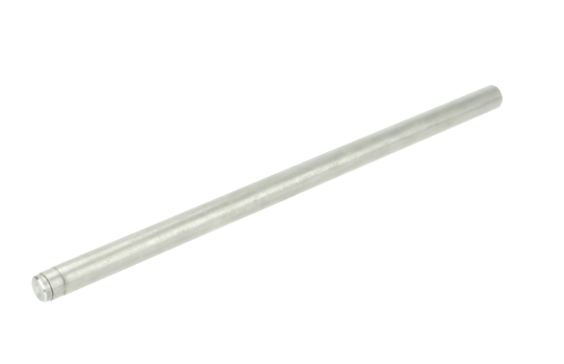

![Embedment Tip]()
