Swivel Lifting Eyes

Swivel Lifting Eyes

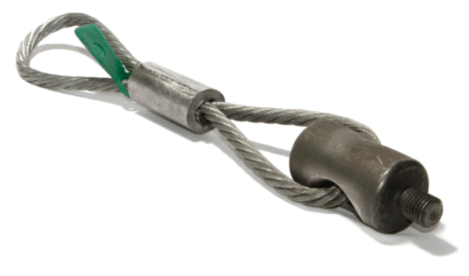

With the Swivel Lifting Eye, precast concrete units can be safely lifted utilising lifting points in their sides. Units can also be safely tilted from the horizontal to the vertical plane and vice versa. The pressure plate with its large cross sectional area generates an even distribution of pressure over a large surface area of concrete. The Swivel Lifting Eye’s special swivelling component automatically adapts to the direction of the inclined lifting forces. The safe working load of the Swivel Lifting Eye is valid for lifts along the axis of the thread through to lifts perpendicular to its axis.

Product Code Thread Dia. (M) Colour Length (mm) SWL (kg)
SLE12 12 Red 118 500
SLE16 16 Dark Grey 130 1200
SLE20 20 Green 146 2000
SLE24 24 Blue 163 2500
SLE30 30 Light Grey 187 4000
SLE36 36 Orange 205 6300
SLE42 42 Yellow 226 8000
SLE52 52 Black 274 12500

Also available in Rd thread. (Add RD to Product Code)

  • Data Sheet

    Swivel Lifting Eye Data Sheet (Download)

    Swiverl Lifting Eye Safety Guidance (Download)

  • Technical Manual

    Threaded Socket Technical Manual (Download)

  • Certificates

    Declaration of Conformance (Download)

    UK Test Certificate Example (Download)
