Combination Lifting Loops

Combination Lifting Loops

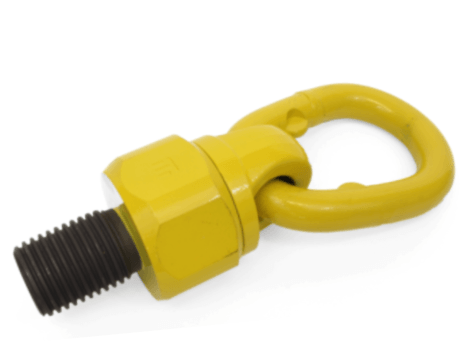

Euro Accessories Threaded Combination Lifting Loop was specifically designed for inclined lifting forces up to 90 degrees. This makes it ideal to use when sockets are fixed into the sides of units to facilitate tilt up lifting when turning a panel from horizontal to the vertical plane.

Product Code Thread Dia. (M) Length (mm) SWL (kg)
SCLL12 12 310 500
SCLL16 16 345 1200
SCLL20 20 410 2000
SCLL24 24 435 2500
SCLL30 30 490 4000
SCLL36 36 570 6300
SCLL42 42 650 8000
SCLL52 52 760 12500

Also available in Rd thread. (Add RD to Product Code)

  • Data Sheet

    Combination Lifting Loop Data Sheet (Download)

    Lifting Loop Safety Guidance (Download)

  • Technical Manual

    Threaded Socket Technical Manual (Download)

  • Certificates

    Declaration of Conformance (Download)

    UK Test Certificate Example (Download)
