Sandwich Panel Anchor

Sandwich Panel Anchors

The Sandwich Panel Anchor is designed for lifting insulated precast elements, the inclined lifting head ensures that the anchor sits at an angle of 15° from vertical in the precast panel, ensuring the anchorage is within the main structural element with the lifting point positioned close to the gravity line of the panel. The panels can be tilted upright and lifted into position utilising the Sandwich Panel Anchor.

Product Code Length (mm) SWL (kg) Pack Size Pallet Size
LASSP025250 250 2500 25 1000
LASSP050300 300 5000 10 400
LASSP075350 350 7500 8 200
LASSP100350 350 10000 6 150

Also available in galvanised. (Add G to Product Code)

  • Data Sheet

    Guidance on Choice of Anchor (Download)

    Sandwich Panel Anchor Data Sheet (Download)

  • Technical Manual

    Spread Anchor System Technical Manual (Download)

  • Certificates

    UKCA Declaration of Conformance (Download)

    EU CE Declaration of Conformance (Download)

    UK Test Certificate Example (Download)

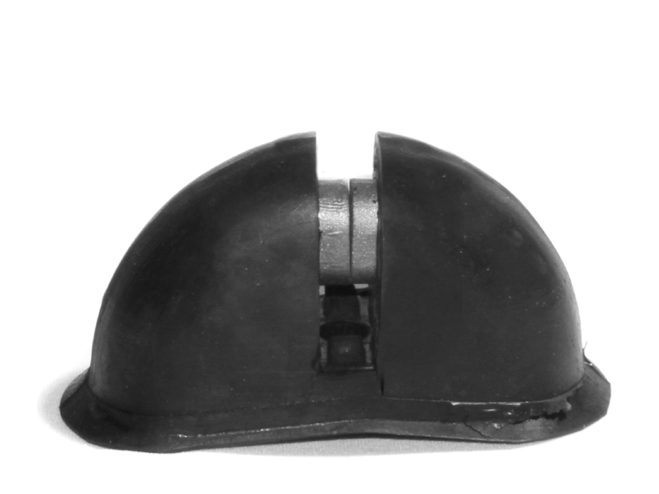

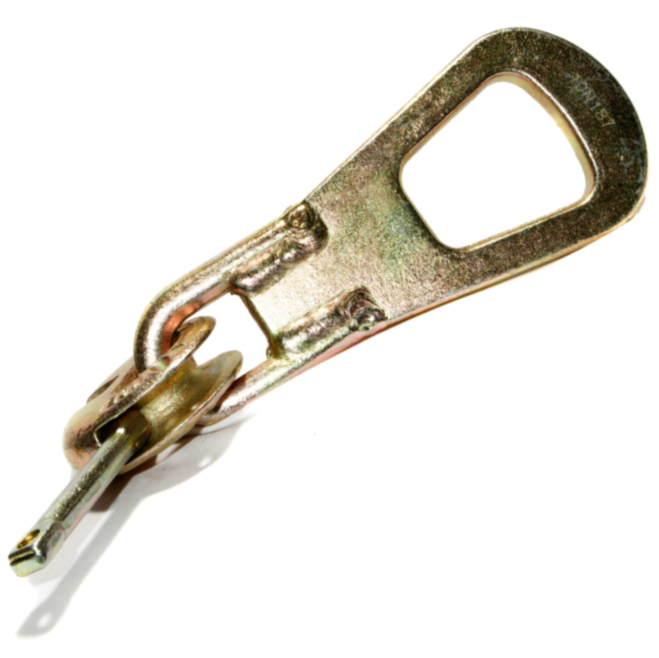

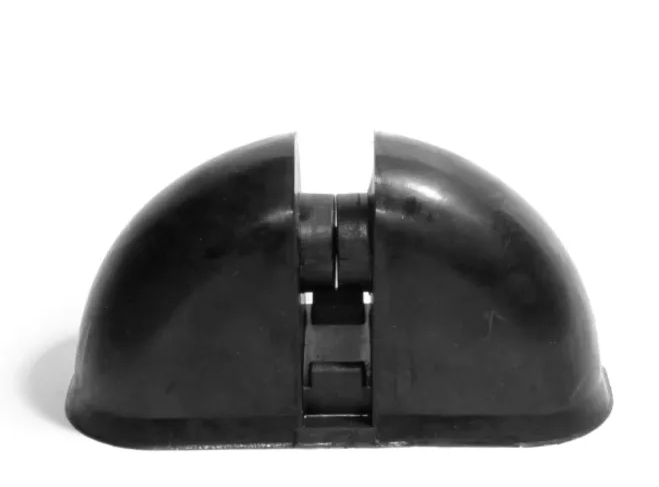

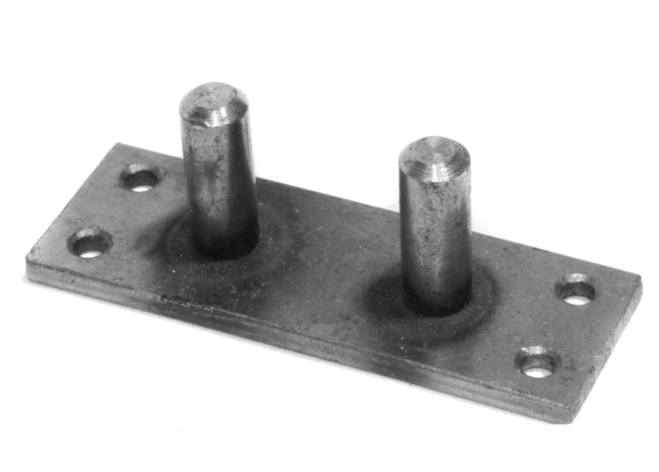

Associated Products
