Spread Anchor Rubber Formers
Spread Anchor Rubber Formers
The Rubber Former is designed to hold the Spread Anchor in position and leave a recess for the Ring Clutch.
| Product Code | Load Group (kg) | Width (mm) | Length (mm) | Height (mm) |
|---|---|---|---|---|
| LASRF013 | 700 - 1300 | 30 | 63 | 35 |
| LASRF025 | 1400 - 2500 | 43 | 104 | 45 |
| LASRF050 | 3000 - 5000 | 49 | 126 | 59 |
| LASRF100 | 5300 - 10000 | 67 | 188 | 85 |
| LASRF260 | 12500 - 26000 | 112 | 233 | 121 |
Associated Products
Associated Products
-

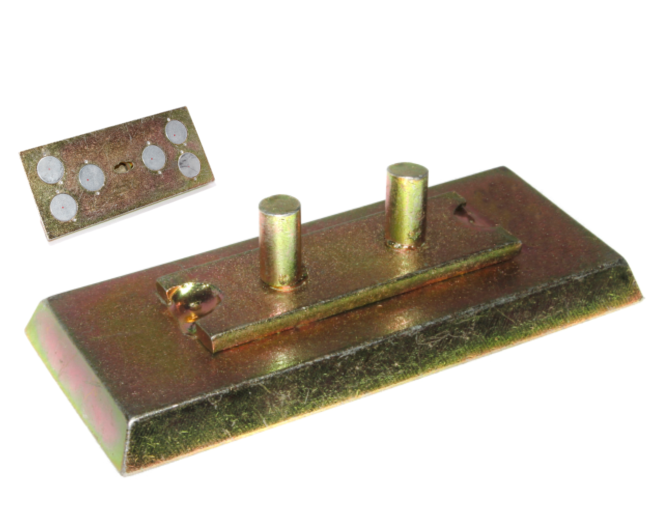

![Spread Anchor Magnetic Holding Plate]()
ButtonSpread Anchor Magnetic Holding Plate
-

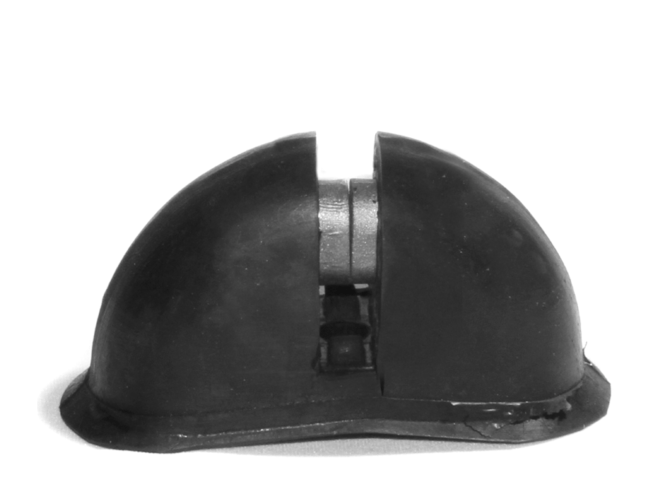

![Spread Anchor Magnetic Rubber Former]()
-
![Hex Set Screw]()
-

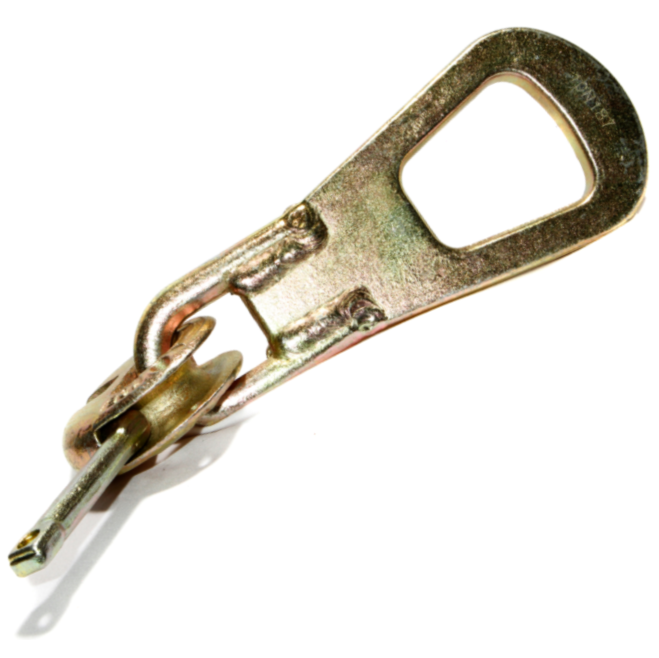

![Spread Anchor Ring Clutch]()
