Plate Spread Anchor
Plate Spread Anchors
Designed for lifting and turning very shallow units, this Spread Anchor relies on reinforcement bars placed horizontally across the square base plate. This means of load transferral allows full capacity of the anchor for both lifting and turning.
| Product Code | Length (mm) | Plate Size (mm) | SWL (kg) | Pack Size | Pallet Size |
|---|---|---|---|---|---|
| LASPA014055 | 55 | 80 x 80 | 1400 | 75 | 1500 |
| LASPA025080 | 80 | 80 x 80 | 2500 | 50 | 1400 |
| LASPA050120 | 120 | 100 x 100 | 5000 | 25 | 800 |
| LASPA100160 | 160 | 140 x 140 | 10000 | 6 | 300 |
Also available in galvanised. (Add G to Product Code)
Associated Products
Associated Products
-

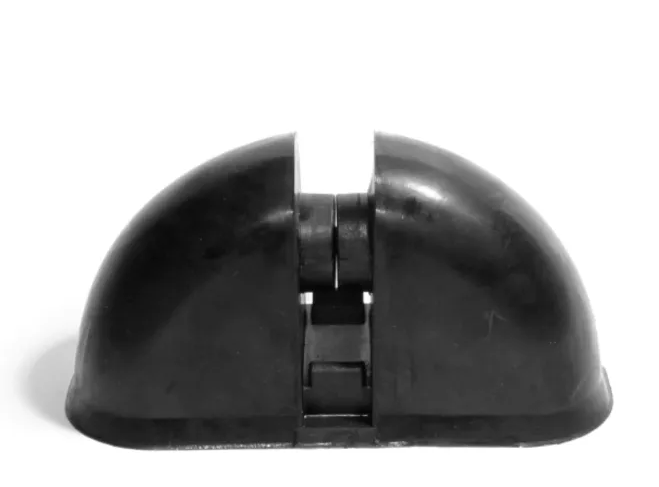

![Spread Anchor Rubber Former]()
ButtonSpread Anchor Rubber Former
-

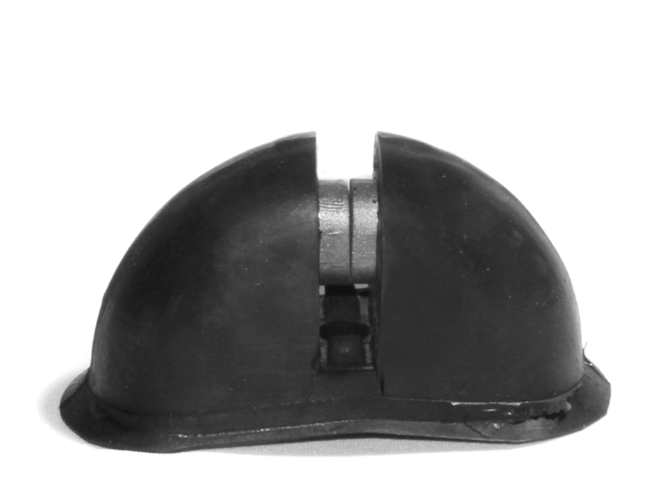

![Spread Anchor Magnetic Rubber Former]()
-
