One Side Erection Anchor

One Side Erection Anchors

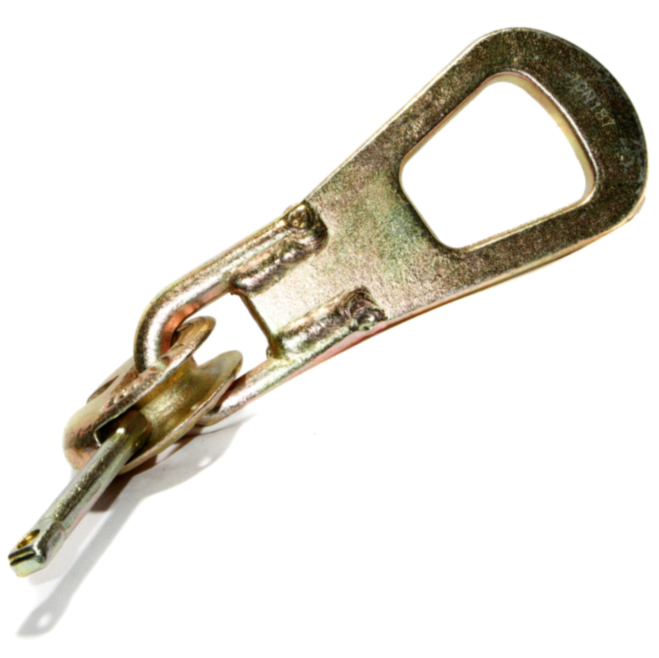

The use of Erection Anchors is advised to alleviate the chance of cosmetic damage to narrow panels whilst turning units from one plane to another. The additional shoulders on the head of the anchor engage directly with the Spread Anchor Ring Clutch, absorbing the shear loads that would normally be absorbed by the narrow edge of the formed pocket around the anchor.

Product Code Length (mm) SWL (kg) Pack Size Pallet Size
LASSE014200 200 1400 40 1600
LASSE025150 150 2500 30 1200
LASSE025230 230 2500 25 1000
LASSE050290 290 5000 10 400
LASSE075320 320 7500 8 200
LASSE100390 390 10000 6 150

Also available in galvanised. (Add G to Product Code)

  • Data Sheet

    Guidance on Choice of Anchor (Download)

    Erection Anchor Data Sheet (Download)

  • Technical Manual

    Spread Anchor System Technical Manual (Download)

  • Certificates

    UKCA Declaration of Conformance (Download)

    EU CE Declaration of Conformance (Download)

    UK Test Certificate Example (Download)
