Long Wavy Tail Lifting Sockets
Long Wavy Tail Lifting Sockets
Manufactured from either high grade precision steel in zinc plated finish or stainless steel, and are supplied with an (Rd) round thread as standard. These sockets have an integral reinforcement bar attached.
| Product Code | Thread Dia. (Rd) | Length (mm) | Bar Dia (mm) | SWL (kg) | Pack Size | Pallet Size |
|---|---|---|---|---|---|---|
| SLWL12137 | 12 | 137 | 8 | 500 | 250 | 7000 |
| SLWL16216 | 16 | 216 | 12 | 1200 | 80 | 3200 |
| SLWL20257 | 20 | 257 | 16 | 2000 | 40 | 1600 |
| SLWL24360 | 24 | 360 | 16 | 2500 | Each | 1600 |
| SLWL30450 | 30 | 450 | 20 | 4000 | Each | 780 |
| SLWL36570 | 36 | 570 | 25 | 6300 | Each | 410 |
| SLWL42620 | 42 | 620 | 28 | 8000 | Each | 300 |
| SLWL52880 | 52 | 880 | 32 | 12500 | Each | 160 |
Also available in stainless steel. (Add SS to Product Code)
Associated Products
Associated Products
-
![TJEP UG Tying Machine]()
ButtonSwivel Lifting Eye
-
![Stainless Steel Tying Wire]()
-

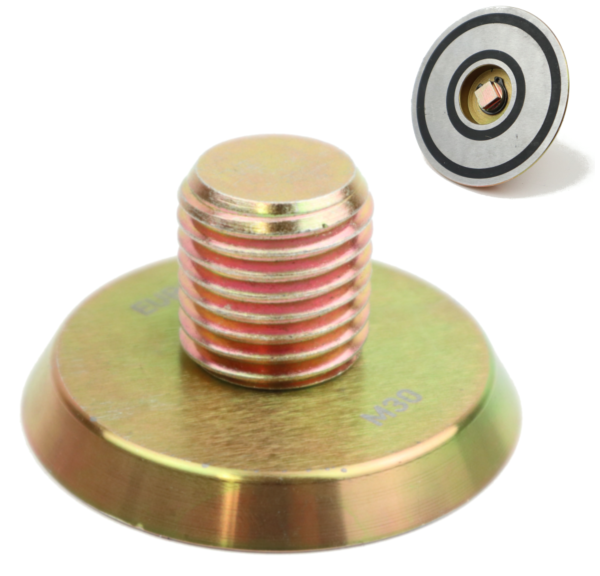

![Magnetic Disc Nailing Plate]()
-

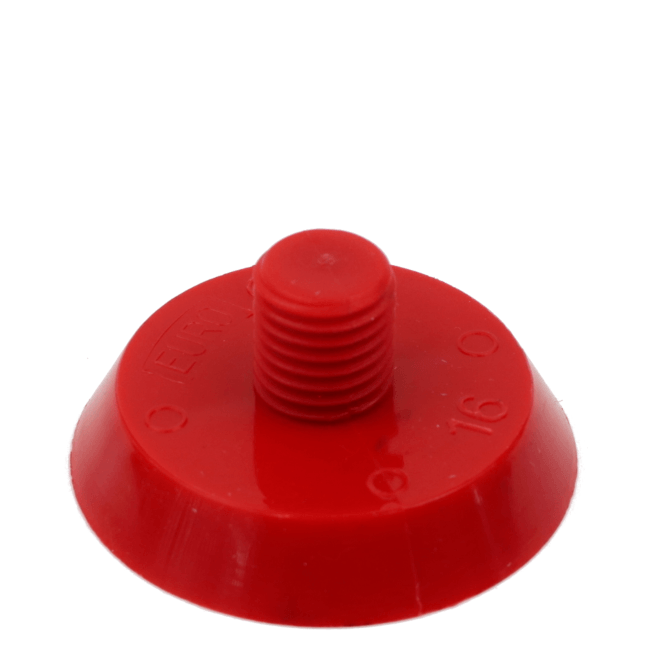

![Threaded Sealing Plug]()
