Eye Anchors

Eye Anchors

The Eye Anchor has been developed for instances where the standard Pin Anchors base cannot be utilised to transfer forces into the surrounding concrete. Used in conjunction with a reinforcement anchorage tail, lifting loads can be transferred deep into the concrete element.

Product Code (Self Colour) Product Code (Galvanised) SWL (kg) Length (mm) Pack Size Pallet Size
LAPE013065 LAPE013065G 1300 65 250 10000
LAPE025090 LAPE025090G 2500 90 100 4400
LAPE025120 LAPE025120G 2500 120 75 3000
LAPE050090 LAPE050090G 5000 90 50 2000
LAPE050120 LAPE050120G 5000 120 40 1600
LAPE100115 LAPE100115G 10000 115 20 800
LAPE100180 LAPE100180G 10000 180 15 600
LAPE200250 LAPE200250G 20000 250 5 220
LAPE320300 LAPE320300G 32000 300 2 100
  • Data Sheet

    Eye Anchor Data Sheet (Download)

  • Technical Manual

    Anchor Pin System Technical Manual (Download)

  • Certificates

    UKCA Declaration of Conformance (Download)

    EU CE Declaration of Conformance (Download)

    UK Test Certificate Example (Download)

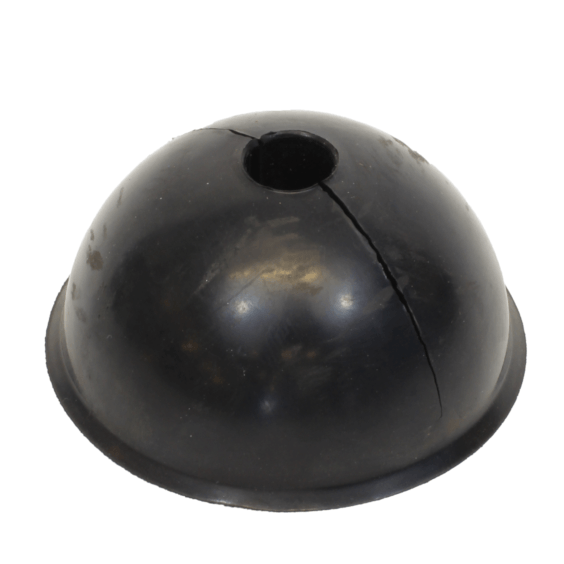

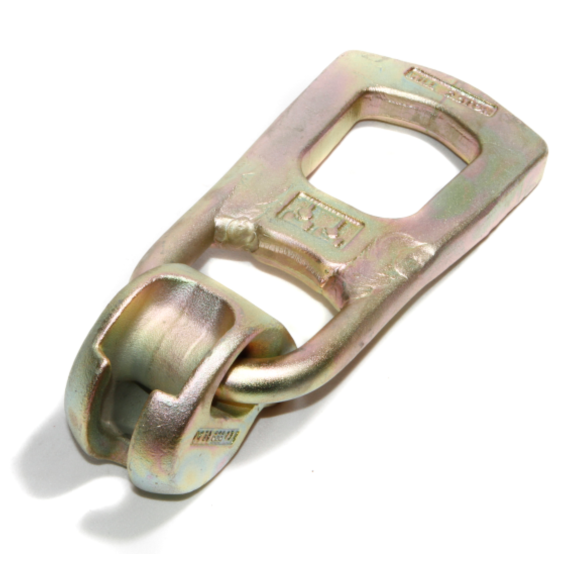

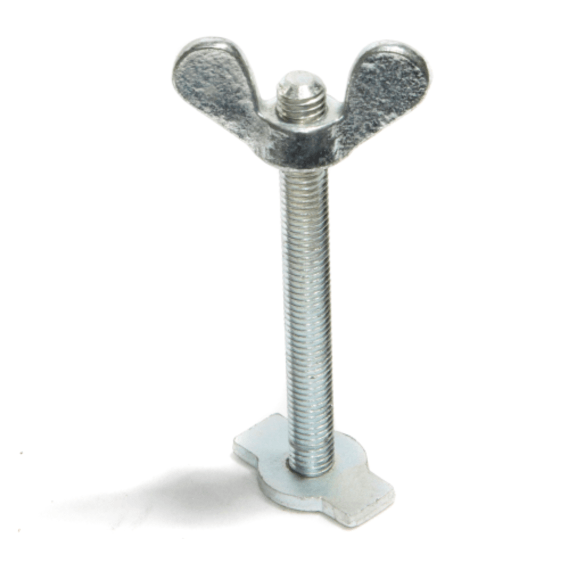

Associated Products
