Erection Anchors

Erection Anchors

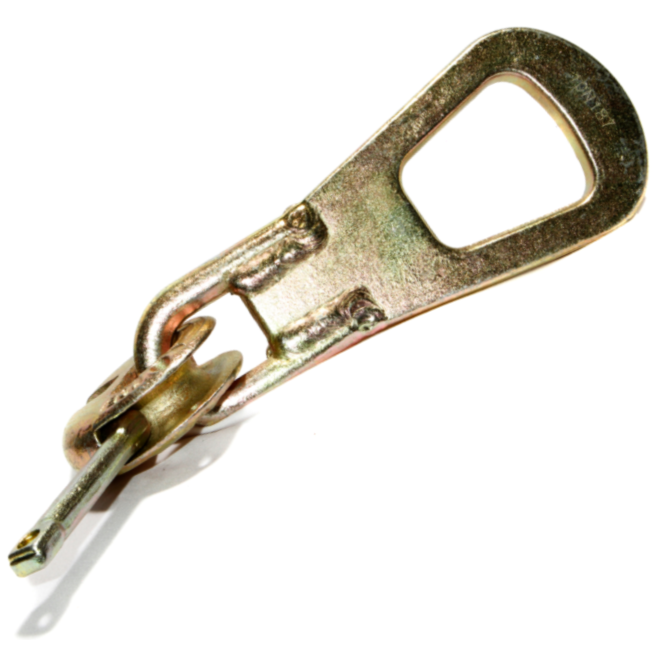

The use of Erection Anchors is advised to alleviate the chance of cosmetic damage to narrow panels whilst turning units from one plane to another. The additional shoulders on the head of the anchor engage directly with the Spread Anchor Ring Clutch, absorbing the shear loads that would normally be absorbed by the narrow edge of the formed pocket around the anchor.

Product Code Length (mm) SWL (kg) Pack Size Pallet Size
LASE014200 200 1400 40 1600
LASE025230 230 2500 30 1000
LASE050290 290 5000 25 400
LASE075320 320 7500 8 200
LASE100390 390 10000 6 150

Also available in galvanised. (Add G to Product Code)

  • Data Sheet

    Guidance on Choice of Anchor (Download)

    Erection Anchor Data Sheet (Download)

  • Technical Manual

    Spread Anchor System Technical Manual (Download)

  • Certificates

    UKCA Declaration of Conformance (Download)

    EU CE Declaration of Conformance (Download)

    UK Test Certificate Example (Download)
