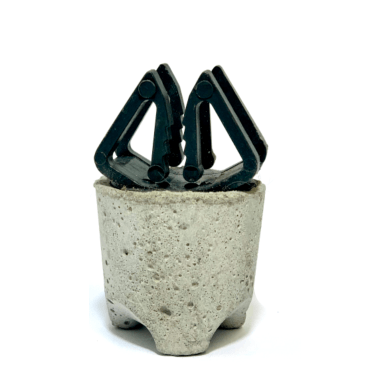

Four Point Support with Galvanised Loop Ties
Concrete spacer with galvanised loop ties and four point support for minimal contact with formwork.
Minimum Concrete Strength of 50N/mm2.
Approved according to DBV specification.
| Product Code | Cover (mm) | Bar Dia. (mm) | Pack Size (no) | Pallet Size (no) |
|---|---|---|---|---|
| CFLT20 | 20 | 6-30 | 600 | 24000 |
| CFLT25 | 25 | 6-30 | 500 | 20000 |
| CFLT30 | 30 | 6-30 | 390 | 15600 |
| CFLT35 | 35 | 6-30 | 350 | 14000 |
| CFLT40 | 40 | 6-30 | 300 | 12000 |
| CFLT50 | 50 | 6-30 | 220 | 8800 |
