Weckenmann M Series

Weckenmann M Series

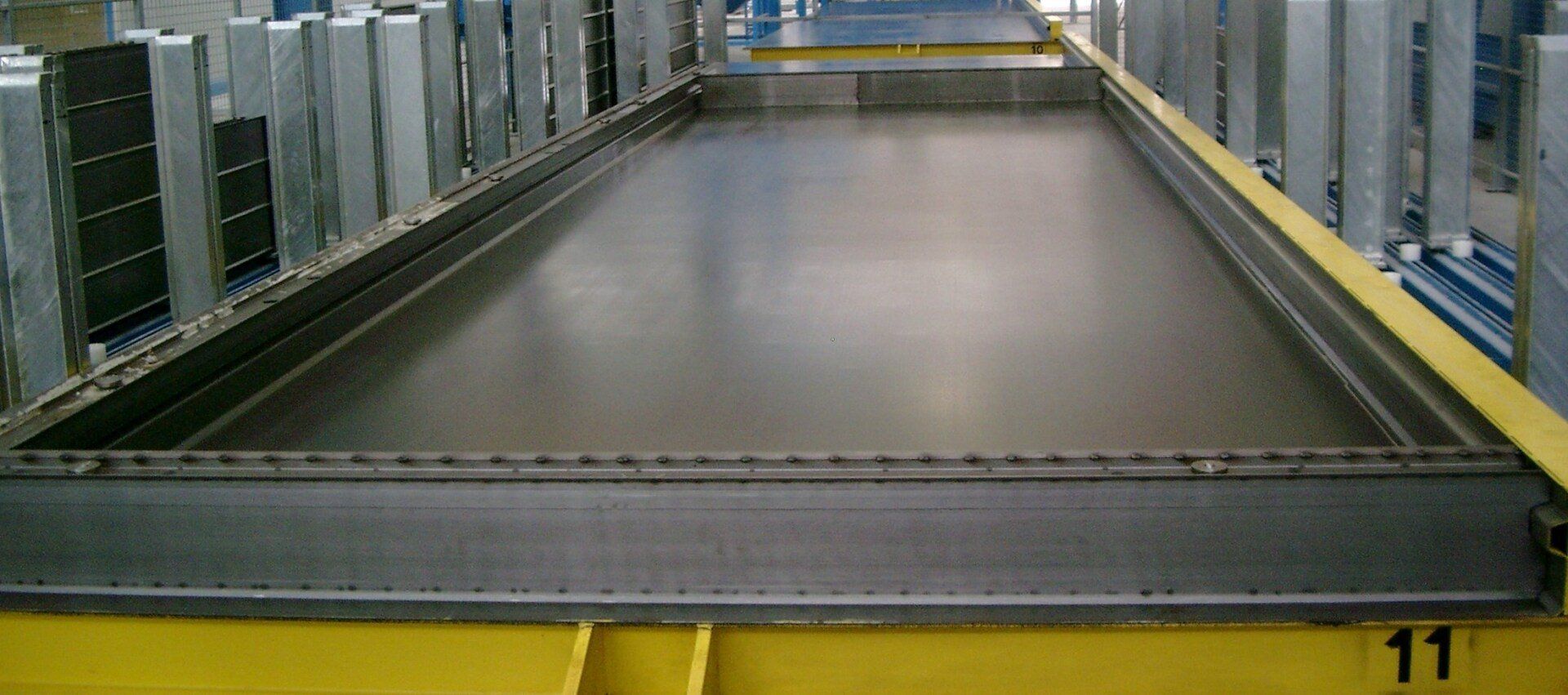

High precision, dual-sided shuttering profile for the manufacturing of solid elements, sandwich panels, slabs and facades in standard thicknesses. Suitable for robot usage and with integrated switchable magnets.


Formwork profiles for the manufacturing of solid precast panels in standard thicknesses

Lightweight and high precision, dual-sided formwork profile for the manufacturing of solid elements, sandwich panels, slabs and facades in standard thicknesses.


Many different cast joint formations. Suited for robot usage and with integrated switchable magnets.

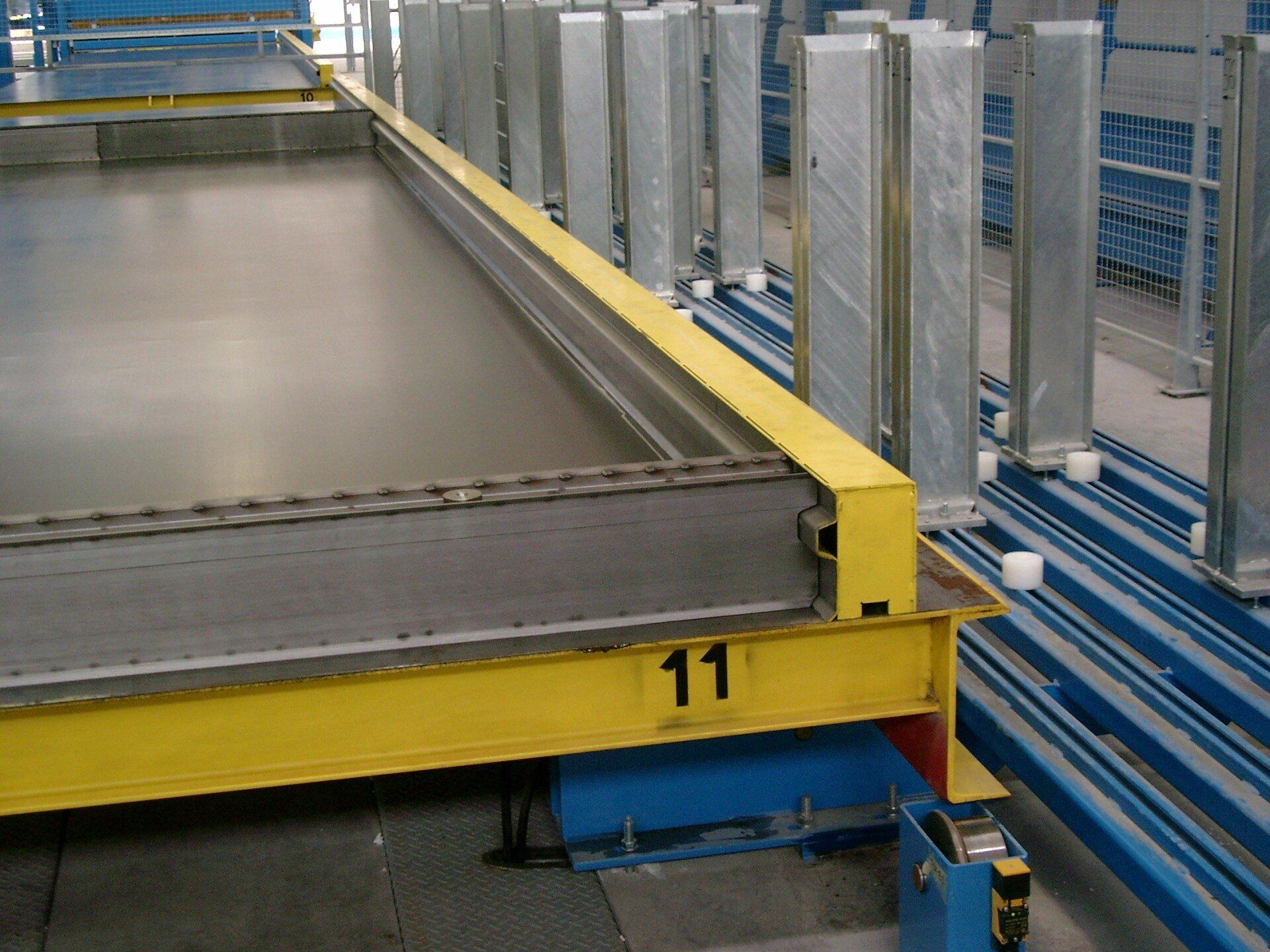

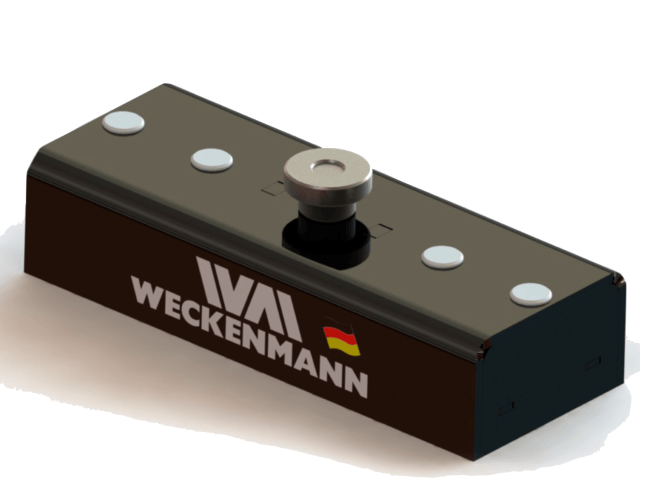

The fixation is carried out with built-in switchable magnets, number depending on the profile design and the intended type of use. The M-SERIES is suited for the manufacturing of solid elements (slabs, walls, external walls) with standard element thickness and with chamfers and profiling on both sides. The fixation is carried out with built-in switchable magnets M1803, number depending on the profile design and the intended type of use.

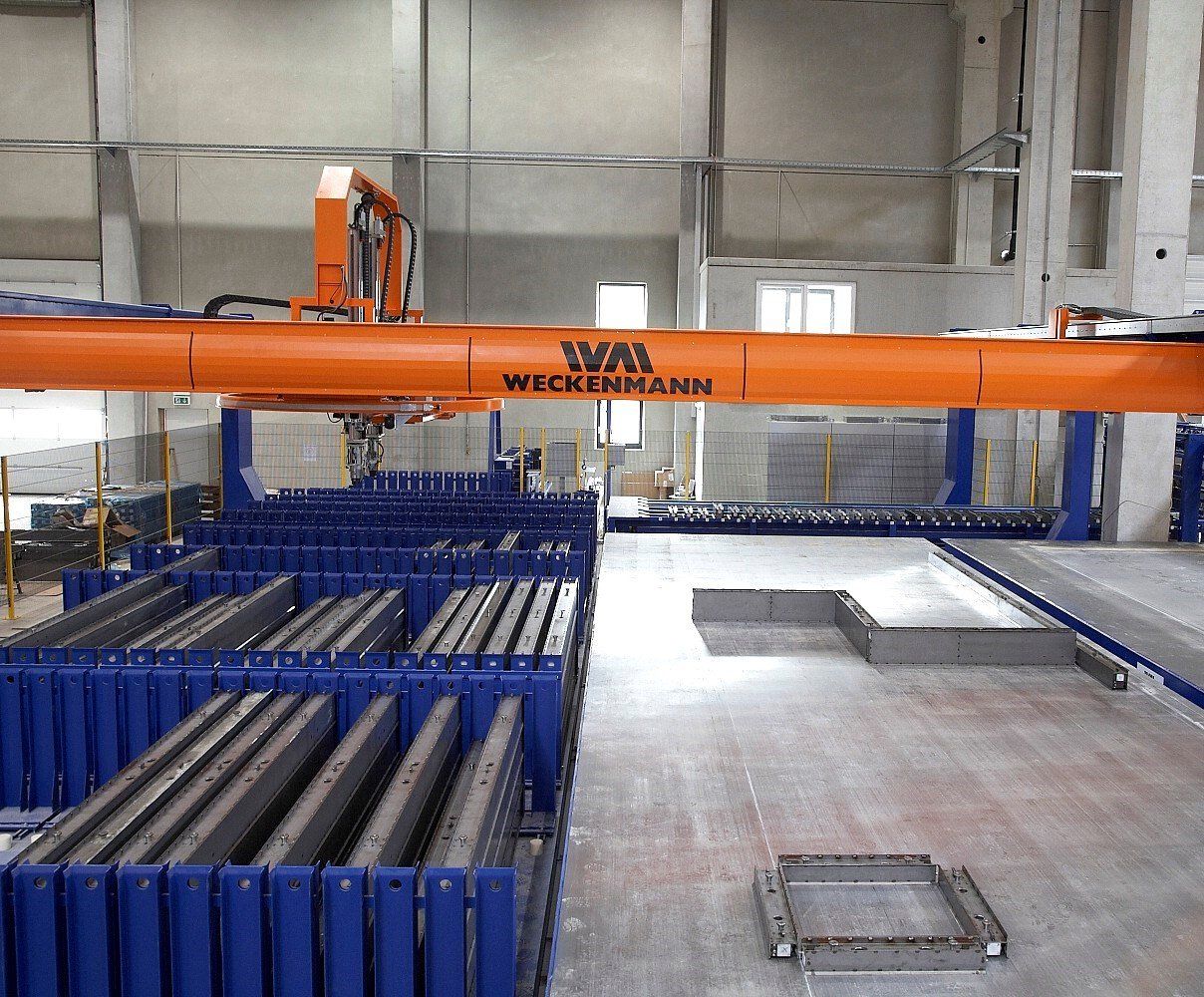

The profiles can be used on both sides, which increases on the one hand side the use of the formwork table, as it is possible to achieve two different profilings for casting joints or similar per profile, by turning the formwork profiles. The positioning of the profiles, the activation of the magnet units and the demoulding can be done either by hand or by a formwork robot. The demoulding can be carried out by a deshuttering robot.


The X-GAP and X-SMART shuttering systems are available to complement the M-SERIES shuttering system for fully variable extension of the profiles and to form connect shutters with different profilings.


Other dimensions are manufactured upon request.


Technical Facts

Height

90 - 400mm

Widths

120mm (plus casting joints and chamfer widths)

Length

750 - 4000mm
