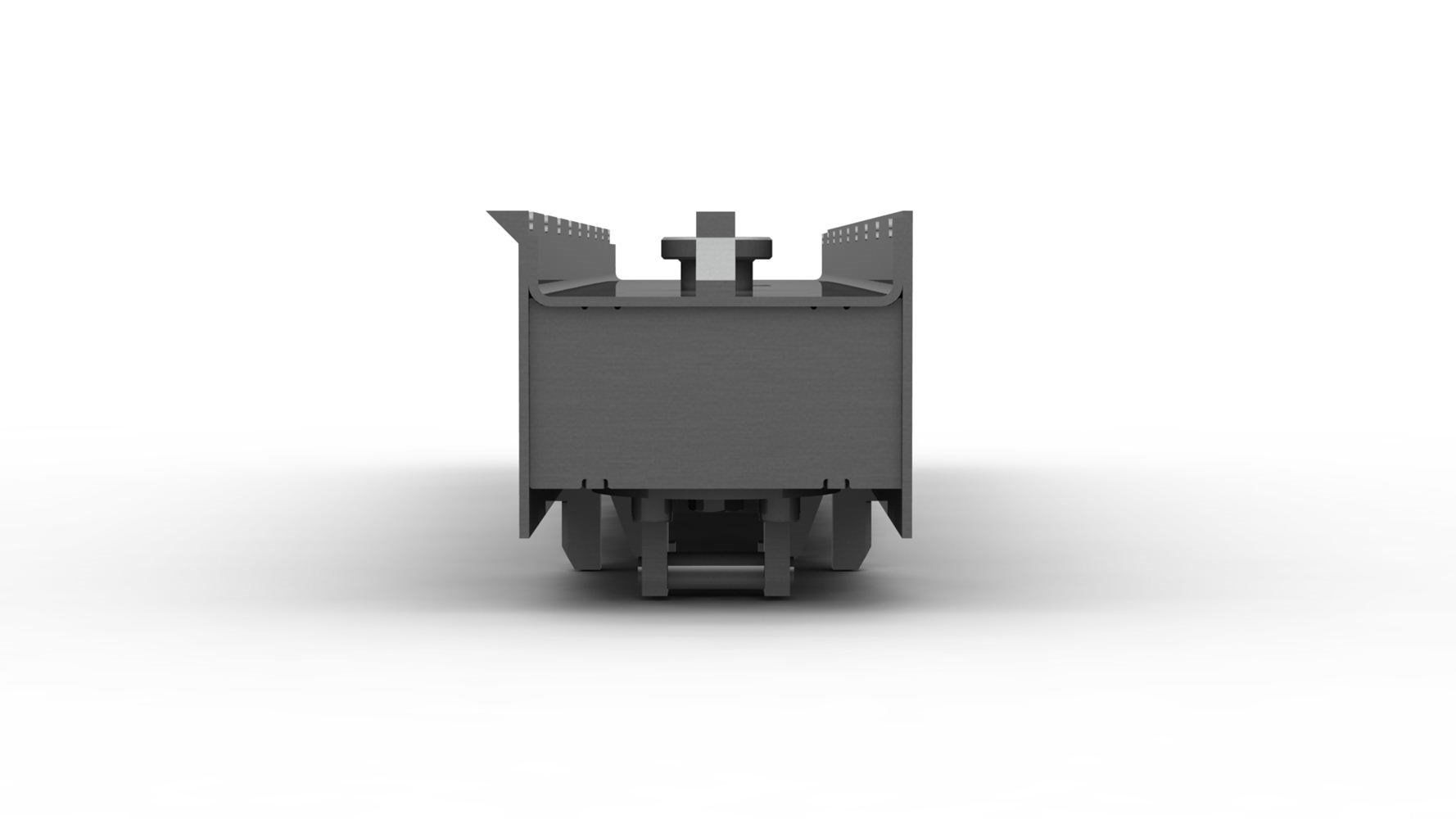

Weckenmann M-Basis / M-Top-Series
Robot compatible, dual-sided shuttering profile in a modular system based on the classic Weckenmann M-Series for manufacturing of solid elements, sandwich panels, slabs and facades in changing thicknesses.
Formwork profiles for the manufacturing of solid precast elements in changing thicknesses
Robot compatible, dual-sided shuttering profile in a modular system consisting of a base formwork and a top profile based on the classic Weckenmann M-SERIES for the production of solid elements, solid walls and sandwich panels, slabs and facades as well as special parts in changing thicknesses.

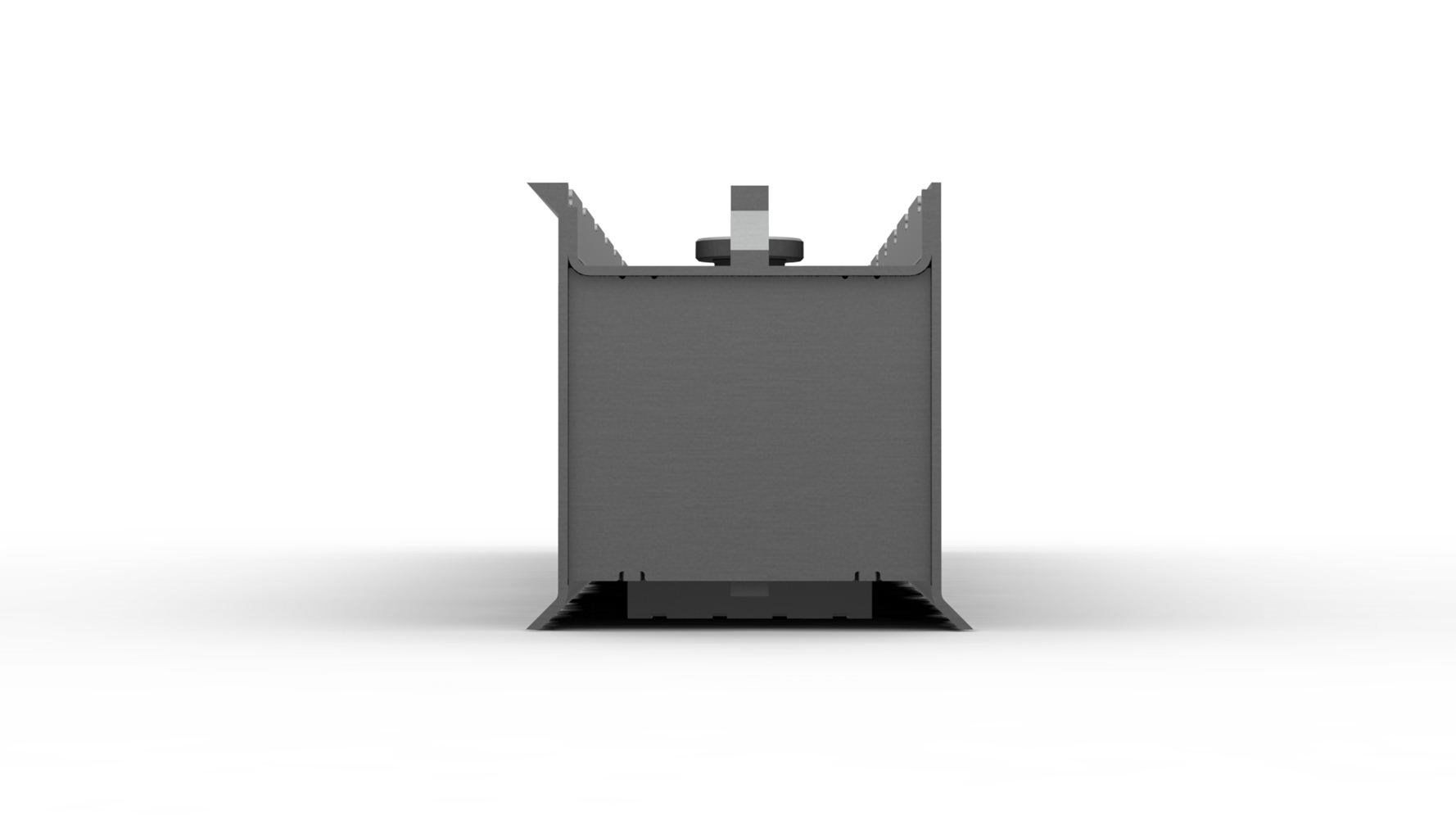

The M-BASIS/M-TOP-SERIES consists of a base shutter with integrated switchable magnets and height extension profiles (M-TOP) in a modular system. Through the use of height extension profiles (M-TOP) the shuttering heights can be extended individually.
The advantages of the M-Series such as robot compatibility, built-in switchable magnets and double-sided usability are preserved also when using M-TOP extension profiles.
Technical Facts
Height
90 - 400mm
Widths
120mm (plus casting joints and chamfer widths)
Length
750 - 4000mm
