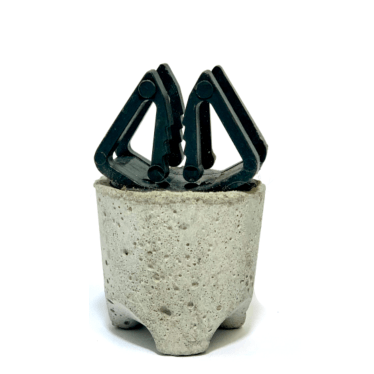

Three Point Spacer with Badminton Clip
Three Point Support with Badminton Clip
Concrete spacer with badminton style plastic clips to allow use with larger bars and three point support for minimal contact with formwork. Also available with four point support.
Approved according to DBV specification.
| Product Code | Cover (mm) | Bar Dia. (mm) | Pack Size (no) | Pallet Size (no) |
|---|---|---|---|---|
| CTPB20 | 20 | 4-14 | 350 | 14000 |
| CTBP25 | 25 | 4-14 | 325 | 13000 |
| CTBP30 | 30 | 4-14 | 300 | 12000 |
| CTBP35 | 35 | 4-14 | 250 | 10000 |
| CTBP40 | 40 | 4-14 | 250 | 10000 |
| CTPB45 | 45 | 4-14 | 200 | 8000 |
| CTBP50 | 50 | 4-14 | 200 | 8000 |
| CTBP60 | 60 | 4-14 | 115 | 4600 |
| CTBP70 | 70 | 4-14 | 92 | 3680 |
Alternatives
Alternatives
-
![]()
Standard Plastic Circles

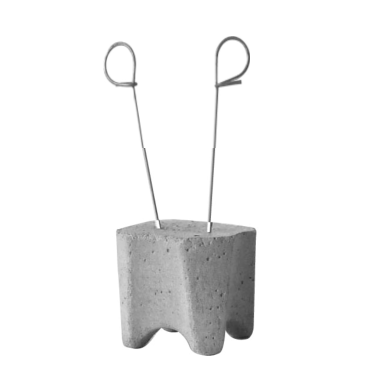

ButtonFour Point Support with Loop Ties
-
![]()
-
![]()
