Introduction

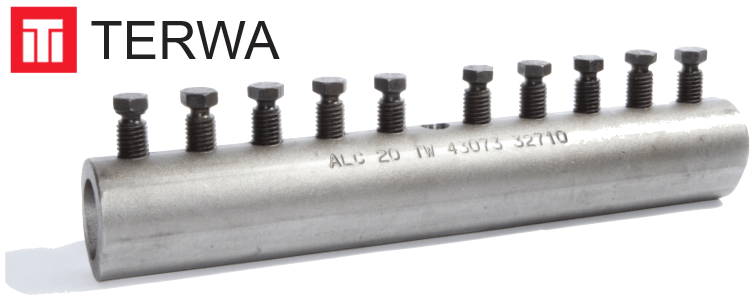

The Alligator Coupler is a splicing coupler designed to meet the requirements of BS8110 and EC2 for mechanical couplers used to form butt joints in reinforcement steel. They are supplied in a range of sizes to suit the reinforcement steel range 10mm to 40mm inclusive. The system is ideally suited to minimising steel congestion in heavily reinforced structures, providing simple connections for prefabricated reinforcement steel and facilitating the removal and replacement of damaged reinforcement steel in repair contracts.

The mechanical connection is made by inserting the rebar into each end of the coupler and tightening the lock shear bolts by hand, once satisfied that the joint is suitably assembled and aligned, the lock shear bolts are tightened up with suitable impact driver. The bolt heads shear off at the desired torque setting, giving a clear indication that installation is complete and satisfactory.


Advantages

  • Reduced steel congestion at joints.
  • Compatible with smooth round and ribbed reinforcement steel.
  • Accommodates any variations in the nominal diameter of the bars being  joined.
  • No rotation of the reinforcement steel required.
  • Tapered profile makes bar insertion easier.
  • No welded parts or joints used in the manufacturing process.
  • No threading of the rebar required.
  • No additional bar preparation required.
  • Works with conventionally cropped reinforcement steel.
  • No specialist training or skills required.
  • Provides the characteristics of a continuous length of reinforcement steel.
  • Gives a clear indication of correct installation.
  • Available from stock in the range 10mm to 40mm diameter.
  • Meets the requirements of BS8110-pt1:1997 and EC2 for mechanical connections in reinforcement steel.
  • Backed up by CARES Technical Approval TA1-B 5065, up to 32mm.

The CARES technical approval TA2 5072 validates that the manufacturer of the Alligator Splicing Couplers has quality management system in accordance with ISO9001:2015, whilst also ensuring the incorporated reinforcement steel is in accordance with BS 4449:2005, cut and bent in accordance with BS8666. The approval also ensures the reinforcement steel meets a strict set of criteria for reinforcement bars used in reinforcement continuity systems, ultimately ensuring the Alligator Splicing Coupler System performs in a manner which fulfils the requirements set down in BS EN1992-1-1:2004 (EC2).
