Standard Tie Bar
Standard Tie Bar
Tie Bar is a high tensile alloy steel bar with a right-hand thread which is self-cleaning and quick to use. A cutting service is available for shorter lengths.
| Product Code | Bar Size (mm) | Length (mtr) | Safe Working Load (kN) | Fail Load (kN) |
|---|---|---|---|---|
| FTB151.0 | 15 | 1 | 90 | 180 |
| FTB151.2 | 15 | 1.2 | 90 | 180 |
| FTB151.5 | 15 | 1.5 | 90 | 180 |
| FTB152.0 | 15 | 2 | 90 | 180 |
| FTB153.0 | 15 | 3 | 90 | 180 |
| FTB15 | 15 | 6 | 90 | 180 |
| FTB201.2 | 20 | 1.2 | 160 | 320 |
| FTB201.5 | 20 | 1.5 | 160 | 320 |
| FTB202.0 | 20 | 2 | 160 | 320 |
| FTB203.0 | 20 | 3 | 160 | 320 |
| FTB20 | 20 | 6 | 160 | 320 |
| FTB26.5 | 26.5 | 6 | 300 | 579 |
| FTB32 | 32 | 6 | 425 | 844 |
| FTB36 | 36 | 6 | 530 | 1069 |
| FTB40 | 40 | 6 | 660 | 1320 |
Associated Products
Associated Products
-
![]()

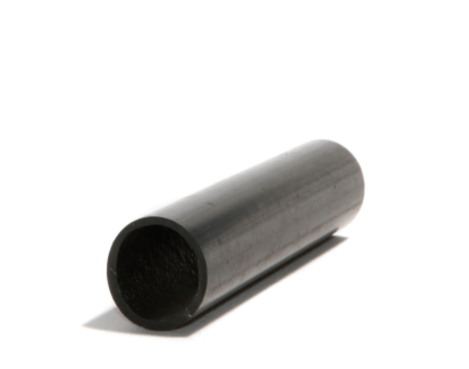

ButtonFormwork Plastic Sleeve
-
![]()
-
![]()
-
![]()
-
![]()
