Prop Sockets
Prop Sockets
A low profile metric threaded fixing socket ideal for connecting temporary supports to wall panels. These sockets can be used with or without additional anchorage reinforcement. Minimum concrete strength 25N/mm².
| Product Code | Thread Dia. (M) | Length (mm) | Plate Dia. (mm) | Plate Thickness (mm) | Load (kN) | Pack Size |
|---|---|---|---|---|---|---|
| SFP1643 | 16 | 43 | 70 | 5 | 17 | 250 |
| SFP1645 | 16 | 45 | 50 | 3 | 20 | 250 |
Associated Products
Associated Products
-
![Hex Set Screw]()
ButtonHex Set Screw
-

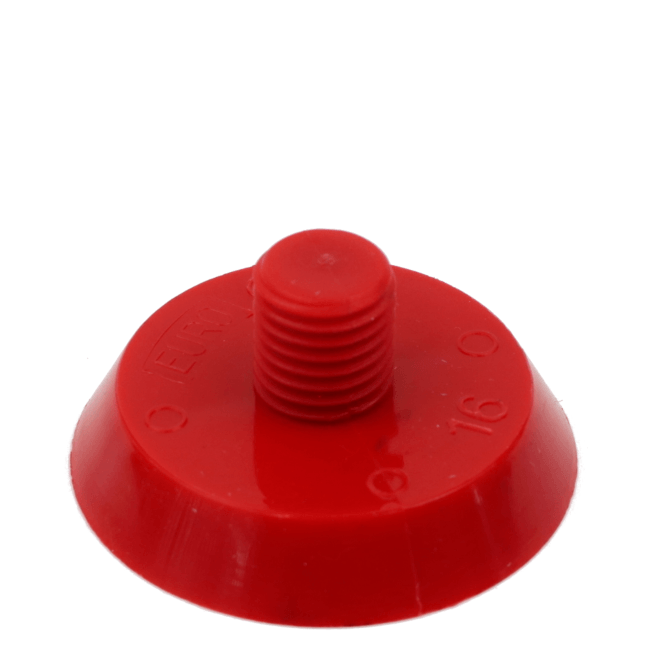

![Stainless Steel Tying Wire]()
-

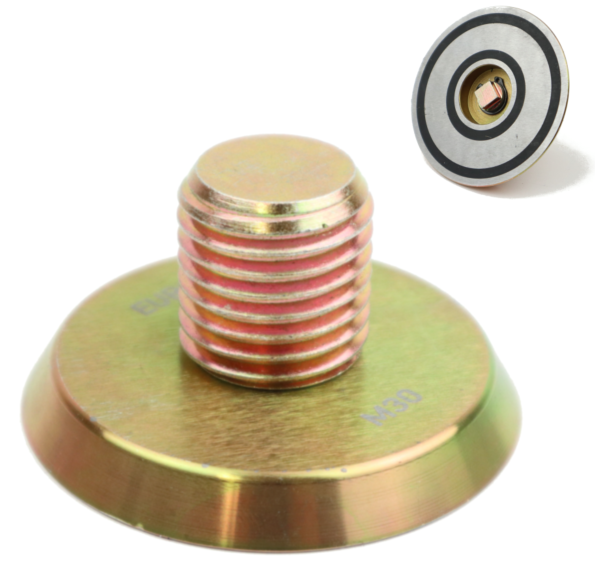

![Magnetic Disc Nailing Plate]()
-

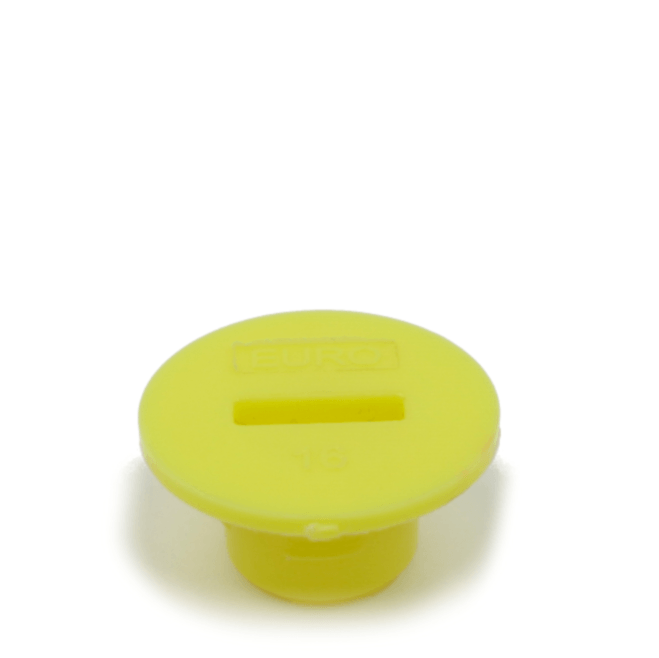

![Threaded Sealing Plug]()
