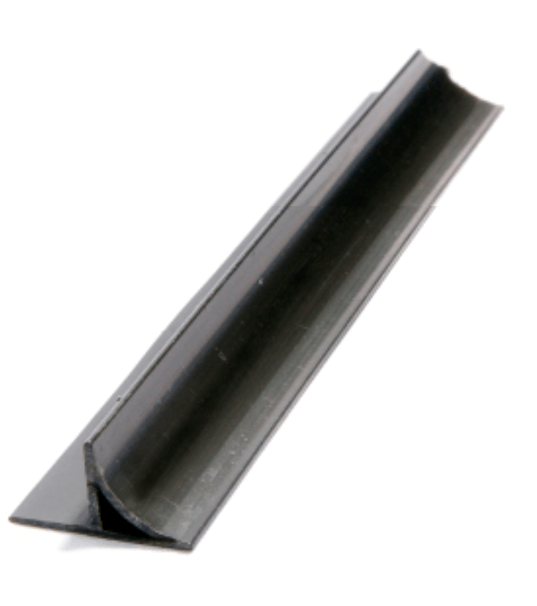

Flanged Chamfer Edge Profiles
Flanged Chamfer Edge Profiles
Chamfer profiles are made of impact resistant plastic and used for forming chamfer edges to columns and beams. The flanged profile is for nailing to the head of the formwork.
| Product Code | A (mm) | B (mm) | C (mm) | Length (mtr) | Pack Size (mtr) |
|---|---|---|---|---|---|
| CHF06 | 6.0 | 9.00 | 20.5 | 2.5 | 100 |
| CHF11 | 11.0 | 15.5 | 26.0 | 2.5 | 100 |
| CHF15 | 15.0 | 21.2 | 32.0 | 2.5 | 100 |
| CHF20 | 20.0 | 28.3 | 37.0 | 2.5 | 100 |
| CHF25 | 25.0 | 36.1 | 46.0 | 2.5 | 50 |
| CHF30 | 30.0 | 42.4 | 53.0 | 2.5 | 50 |
Associated Products
Associated Products
-
![]()

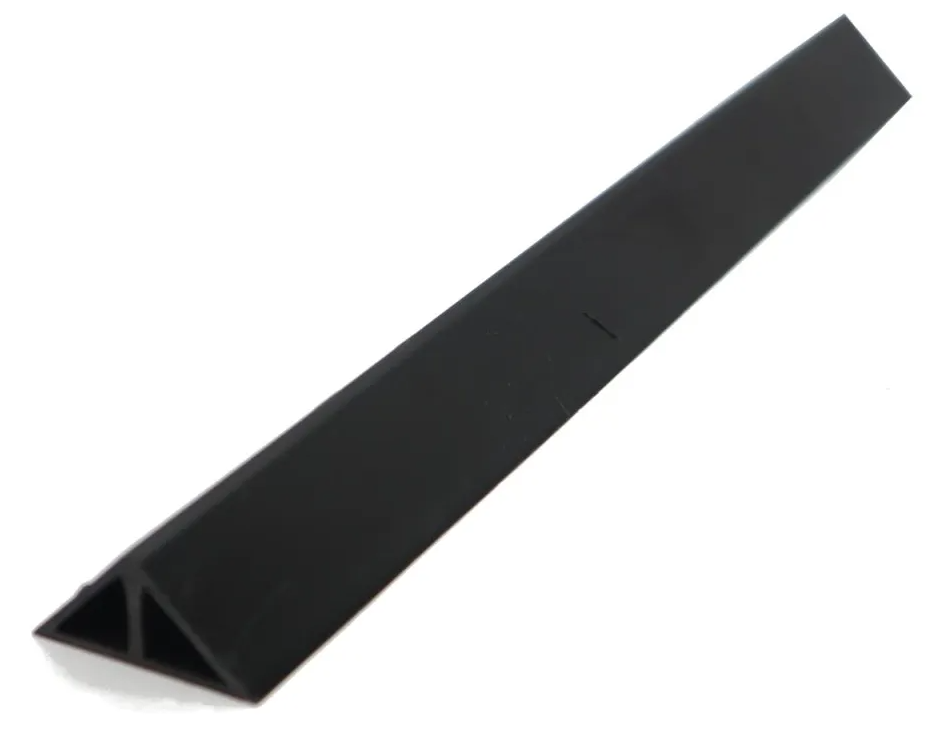

ButtonPlain Chanfer Edge Profiles
-
![]()
-
![]()
-
![]()
